This compact goniophotometer has been specially designed for the precise measurement of ray data from small light sources such as LEDs, OLEDs and modules. The positional accuracy of the rays is 0.01 mm, so that even very small LEDs can be measured with high quality.

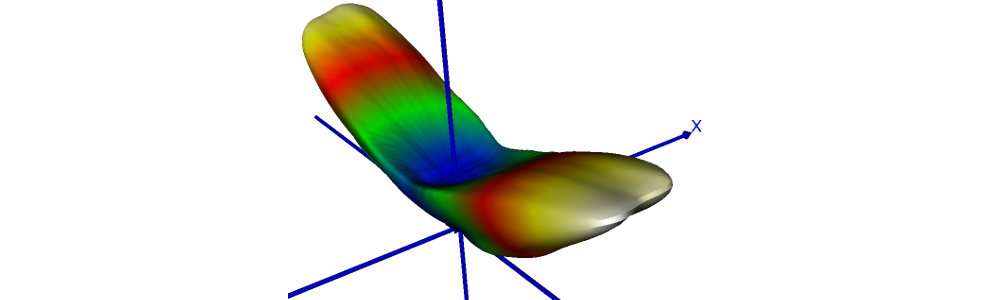

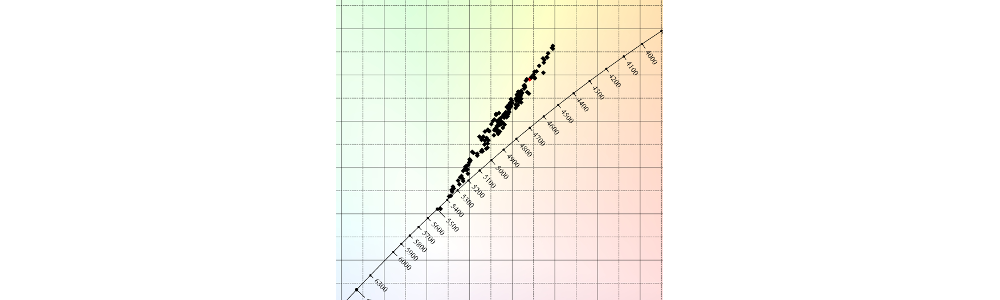

As with all RiGO801 goniophotometers, the luminous intensity distribution and the luminous flux are also measured here. Spectral multi-channel measurements are supported with the filter wheel version (option) of our measuring cameras. Goniospectrometric measurements are carried out with a spectroradiometer (option).

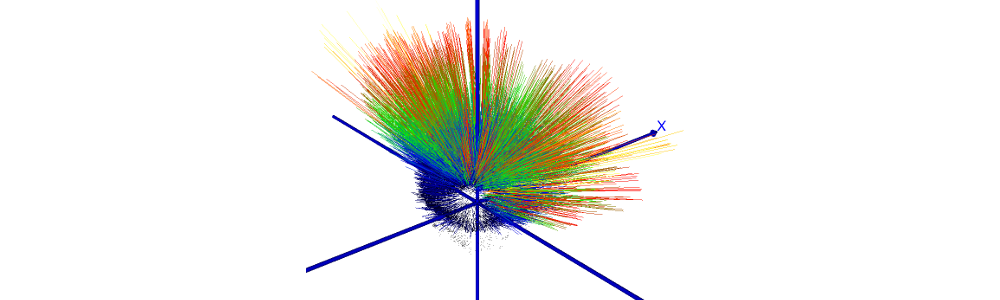

The ray data are stored in the TechnoTeam file format TTR. For the conversion into all common ray data file formats we provide the free software Converter801.

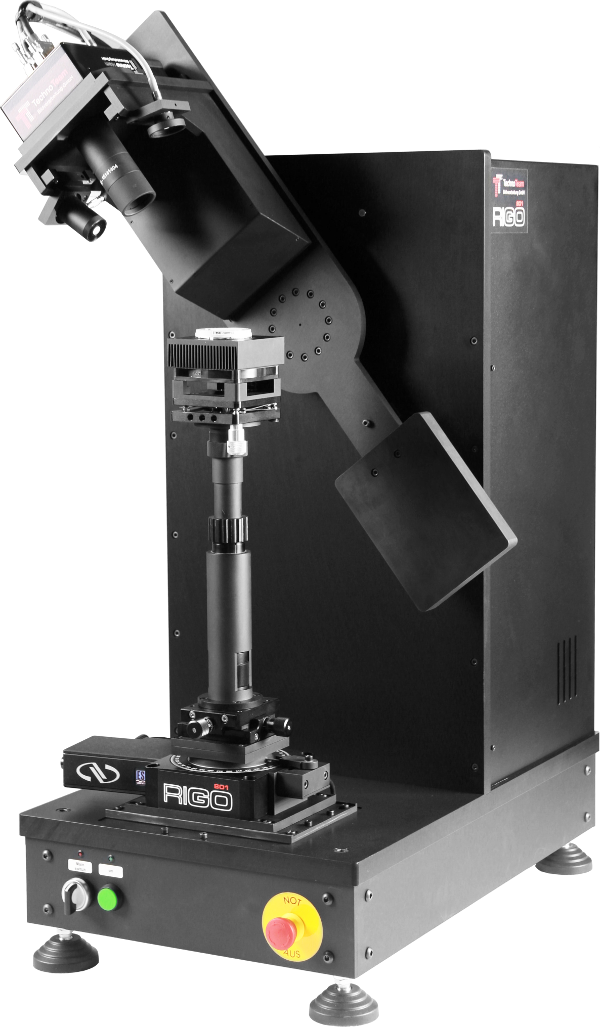

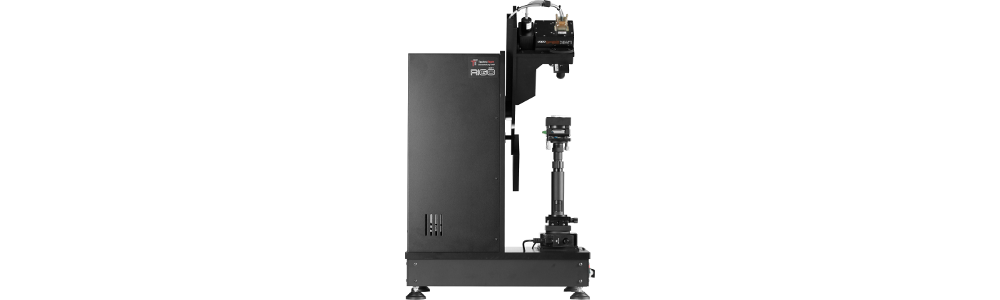

Goniophotometer RiGO801 - LED

Basic technical data

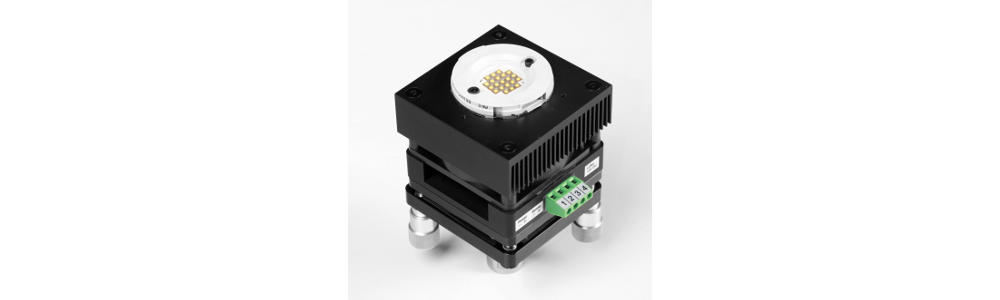

Size of the device under test
≤ 200 mm (diameter)
Space requirements LxWxH = approx. 700 x 700 x 1000 mm³
Movement The sensors are moved on a circular path around the measuring object (horizontal axis, theta). The DUT is rotated in an upright position on a vertical rotation axis (phi)
Measuring position Upright and vertically rotating
Measuring camera LMK 6-5 / LMK 6-5 color

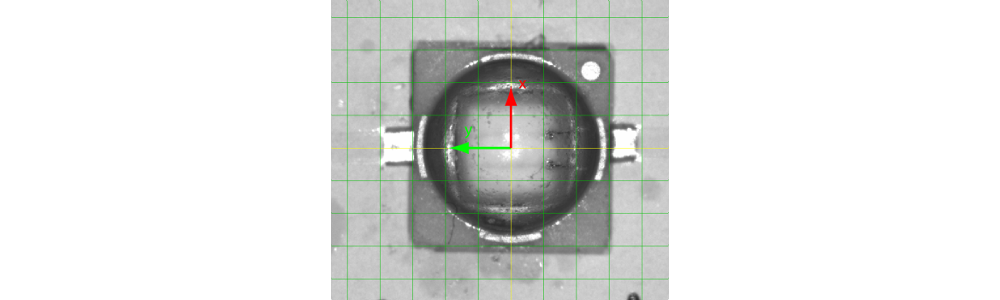

Position accuracy of the ray data < 0.01 mm

Relevant products and applications

Publications

Advanced Optical Technologies

This paper summarizes selected approaches, to generate spectral ray data for different types of spectrally varying light sources including only angular variable as well as spatial and angular variable sources. This includes a description of their general ideas and applications, the required measurements, and their mathematical concepts. Finally, achieved results for an Red/Green/Blue/White-light emitting diode (RGBW-LED) system are shown. Ray tracing simulations of a spatially and angularly spectral varying LED system combined with a spectrally sensitive optical system are qualitatively and quantitatively compared to a colorimetric far-field measurement of the same system. The results demonstrate the potential and benefits of spectral ray files in general.
Authors: I. Rotscholl; K. Trampert; F. Schmidt

LICHT

Die Anforderungen an Lichtquellenmodelle im Entwurfsprozess moderner Leuchten für die allgemeine Lichttechnik nehmen im Zuge der steigenden Anforderungen an die Beleuchtungstechnik stetig zu. Dabei rückt zunehmend auch die ort- und winkelaufgelöste Farb- und Spektralverteilung in den Vordergrund. Basierend auf der Annahme, dass die spektrale Variation von Lichtquellen als gewichtete Summe von konstanten Basisspektren beschreibbar ist, soll in diesem Beitrag ein allgemeiner Messansatz zur Erzeugung solcher Lichtquellenmodelle vorgestellt werden Der Schwerpunkt liegt dabei auf der Messung und Rekonstruktion der spektralen Information. Des Weiteren wir das Verfahren auf Basis einer leuchtstoffbasierten Weißlicht-LED getestet und mit dem speziell auf diese LED-Familie zugeschnittenen Stand der Technik – dem Blau/Gelb Rayfile – vergleichen.
Authors: I. Rotscholl; K. Trampert; U. Krüger; I. Leopoldo Sayanca; F. Schmidt; C. Neumann

LED Professional

The enhanced complexity of modern lighting systems has increased the importance of realistic light source models during the optical design process of LED-based luminaires. I. Rotscholl, Research Associate, K. Trampert, C. Neumann, I. Leopoldo Sayanca from the Karlsruhe Institute of Technology, U. Krüger and F. Schmidt from the TechnoTeam Bildverarbeitung GmbH, propose a method to enhance the often used LED light source model “ray file” towards a “spectral ray file”. A spectral ray file would be a model that associates each ray with its own spectrum and therefore describes varying spectra as a function of angular direction and spatial starting position. The PMBS (physically motivated basis spectra) method is based on the assumption that each LED spectrum consists of a weighted sum of individual basis spectra, for instance, those of individual semiconductors and phosphors. There is no need for any special measurement equipment but a classic nearfield goniophotometer and some off-the-shelf optical filters. This method requires at least one spectral measurement and just a minimum of goniophotometric measurements with different optical filters. Finally, the authors demonstrate the potential of this method by applying the concept on a typical LED and compare the results to the often used Blue/Yellow approach in terms of accuracy and applicability.
Authors: I. Rotscholl; K. Trampert; U. Krüger; I. Leopoldo Sayanca; F. Schmidt; C. Neumann

KIT | 212

This book presents, validates, and applies a fast, accurate and general measurement and modeling technique to obtain spectral near field data of LED systems for optical simulations in order to address the steadily increasing requirements of modern high-quality LED systems. It requires only a minimum of goniophotometric near field measurements and no time-consuming angularly resolved spectral measurements. The obtained results can be used directly in state-of-the-art ray tracers.
Authors: I. Rotscholl

OSA Publishing | A1597-A1611

Precise spectral and colorimetric simulations in commercial ray-tracing software require realistic light source models, which provide spectral information as a function of angle and spatial dimension. We describe and validate a general workflow to create hyperspectral LED models as a linear combination of spectral models. The workflow only requires user-defined precisions and ray files obtained with different optical filters. The ray files are transformed into histogram-based models, whose precision is evaluated by normalized cross-correlation values of their intensity distributions in the near-, mid-and-far field. Additionally, the concept is evaluated with a spatial and spectral well-defined test device.
Authors: I. Rotscholl; M. Katona; K. Trampert; U. Krüger; F. Schmidt; C. Neumann

Optics Express

To simulate and optimize optical designs regarding perceived color and homogeneity in commercial ray tracing software, realistic light source models are needed. Spectral rayfiles provide angular and spatial varying spectral information. We propose a spectral reconstruction method with a minimum of time consuming goniophotometric near field measurements with optical filters for the purpose of creating spectral rayfiles. Our discussion focuses on the selection of the ideal optical filter combination for any arbitrary spectrum out of a given filter set by considering measurement uncert-ainties with Monte Carlo simulations. We minimize the simulation time by a preselection of all filter combinations, which bases on factorial design.
Authors: I. Rotscholl; K. Trampert; U. Krüger; C. Neumann

LASER+PHOTONICS 2007/02

Das Erstellen von physikalischen Strahlenmodellen ist äußerst aufwendig und kann die Realität immer nur endlich genau erfassen. Gemessene Strahlendaten beschreiben die Lichtquelle dagegen genau. Die ermittelten Werte verbessern die Simulation von Leuchtquellen, beschleunigen den Entwicklungsprozess und lassen sich in die Datenformate der gängigen Simulationswerkzeuge exportieren.
Authors: K. Bredemeier; R. Poschmann; F. Schmidt

ISAL 2005 Symposium; Darmstadt University of Technology

The ray data measured by means of modern near-field goniophotometers open up new ways in the development of optical systems. For numerous applications, synthetic models of radiation characteristics are insufficient for realistic optical simulations. The near-field goniophotometers type RiGO801 developed by the TechnoTeam company measures the real 4D- luminance distribution of measuring objects and provides ray data for various simulation programs.
Authors: K. Bredemeier; F. Schmidt; W. Jordanov
