LMK 6: High-precision luminance measurement camera for lighting analysis

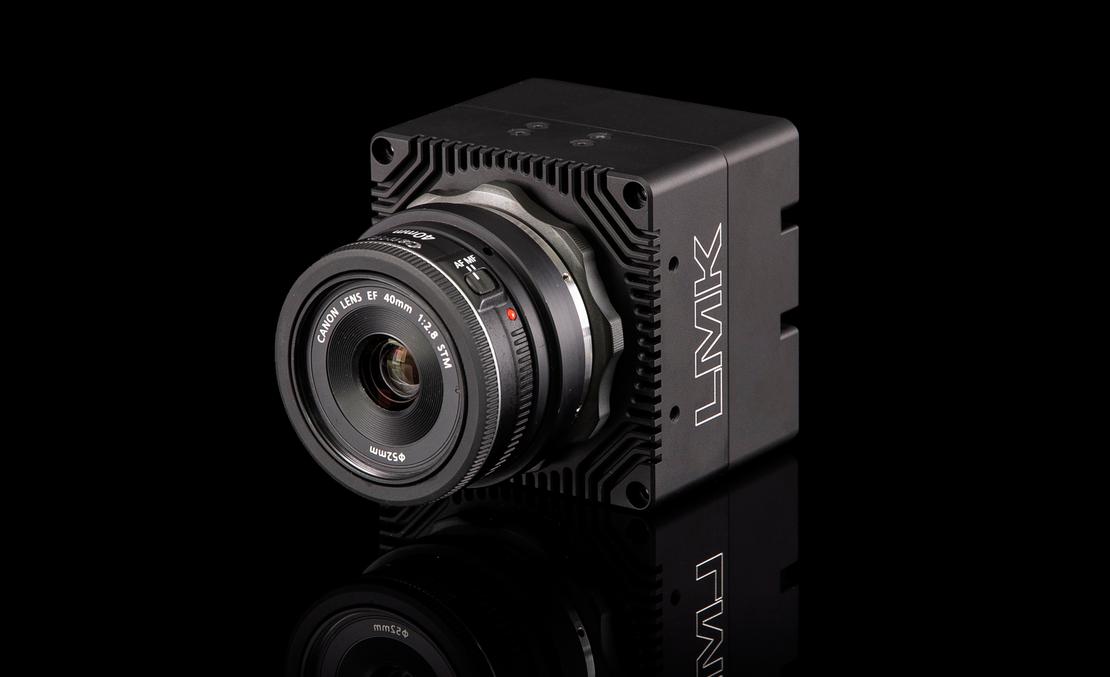

The LMK 6 is TechnoTeam's luminance measurement camera and is used in many ways as a standalone measuring device. It is compact and lightweight and can be applied in almost any light measurement application. As it is one of TechnoTeam's core products, it is also used in our other camera-based measurement systems.

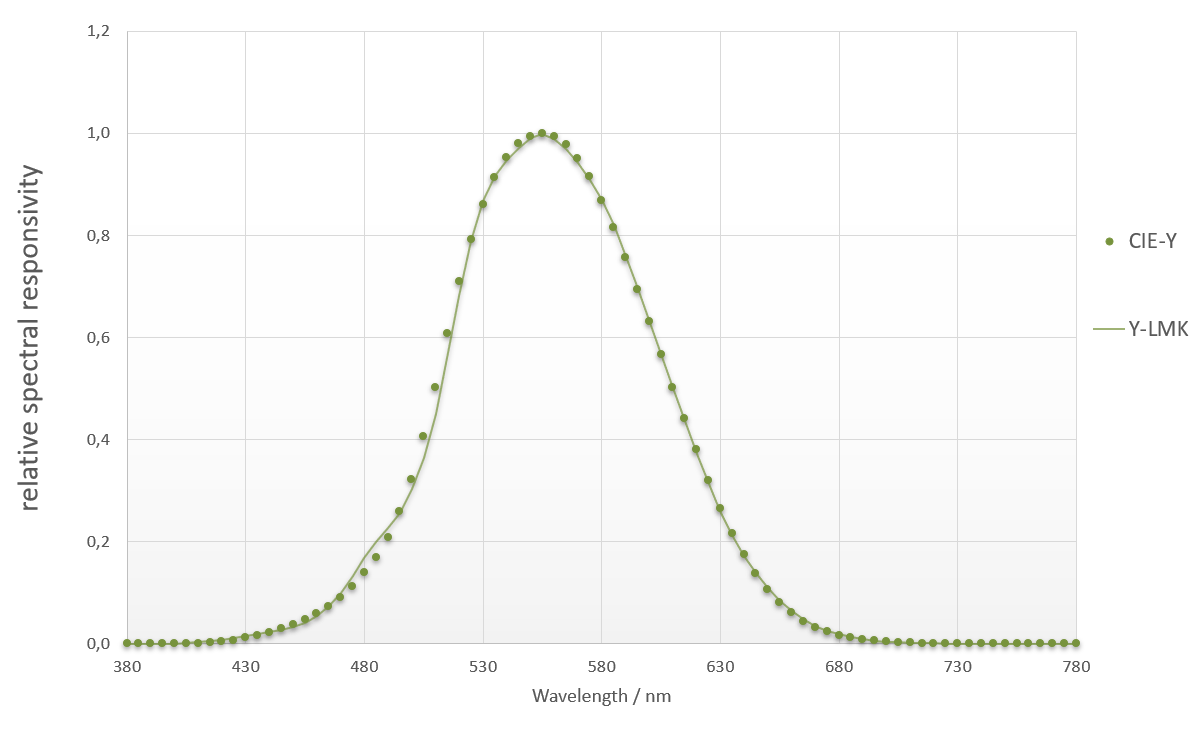

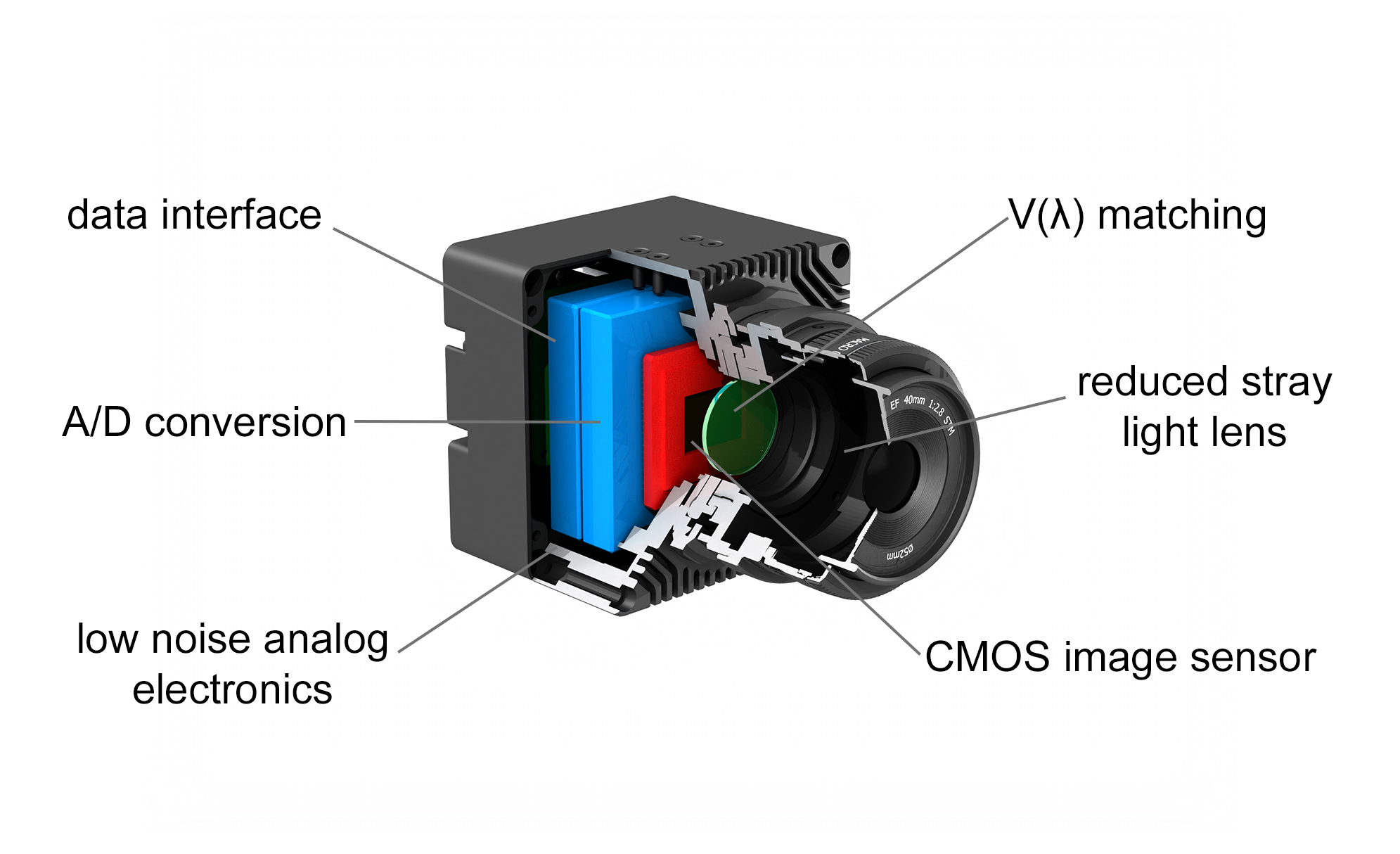

The LMK 6 is currently available in three model types with different image sensor sizes. Equipped with a V(λ) adapted spectral filter glass, the LMK 6 achieves a spectral responsivity that is closely aligned with the standard CIE-Y function, ensuring measurements that reflect human brightness perception.
Advantages
- Individual calibration of each LMK
- Additional calibration for high-contrast measurements
- Wide range of lenses with customizable settings
- Size and Weight
- High transmissive spectral matching glass filters
- Optional optimized stray light reduction
Your own LMK product package
- LMK 6 (5 MP/12 MP/30 MP)
- Selected lenses with optional ND filters
- Individual calibration
- Software with optional add-ons
- Lifetime support
Measured data
- luminance distribution in a measurement image L(x,y)
- derived photometric parameters such as illuminance distribution E(x,y) and luminous intensity distribution function I(x,y)
- statistical data for direct further processing in calculation programs (e.g. Microsoft Excel®, MATLAB®, LabVIEW®)
Which LMK 6 Model is right for you?
The LMK 6 is available in three different model types with different megapixels, lenses, optical components and software application packages available. Click on the LMK 6 types below to find out the differences and advantages!
